Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

The assist system operating facility is connected to the vehicle electrical system by means of a 6-pin plug connection. The LIN bus connects the operating facility of the assist system with the Body Domain Controller (BDC).

The power distribution box on the Body Domain Controller (BDC) supplies the driver assistance system operating facility with terminal 30F.

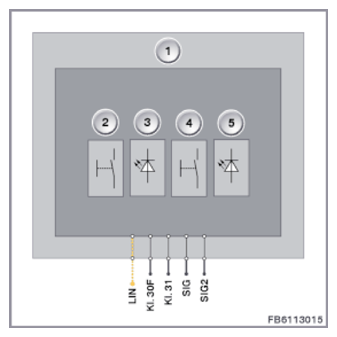

Fig 1: Function Indicator Light - Circuit Diagram
G09908821Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Assist systems operating facility
2 Driver assistance system operating facility button
3 Function indicator light button of driver assistance system operating facility
4 Hazard warning switch
5 Function indicator light of hazard warning switch
PIN REFERENCE

Pin Explanation
Terminal 30F Shutdown of terminal 30F in event of failure
Kl. 31 Ground connection (Terminal 31)
LIN LIN bus
SIG Signal, hazard warning switch
SIG2 Signal of function indicator light
1 pin not used.
