Door wiring harness on driver's door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The wiring harness for the front door on the driver's side can become jammed between the mid-range speaker and door trim panel.

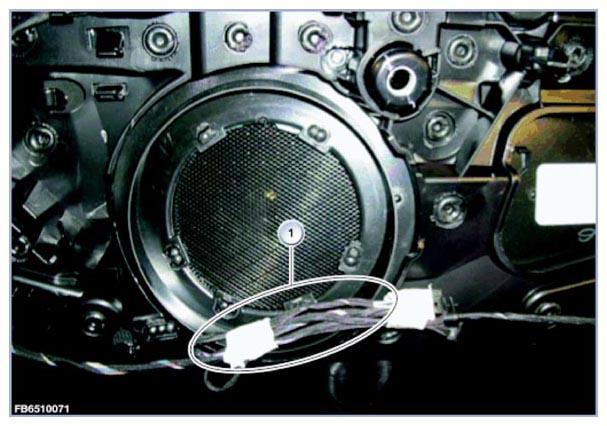

Courtesy of BMW OF NORTH AMERICA, INC.
| Index |
Explanation |
| 1 |
Door wiring harness |

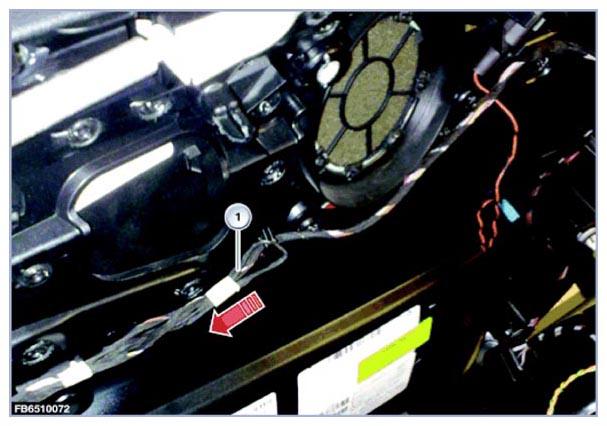

Courtesy of BMW OF NORTH AMERICA, INC.
| Index |
Explanation |
| 1 |
Move door wiring harness away from speaker |
