Targeted foot movement
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
For correct functioning, the foot must be inserted under the center of the bumper and then withdrawn immediately.

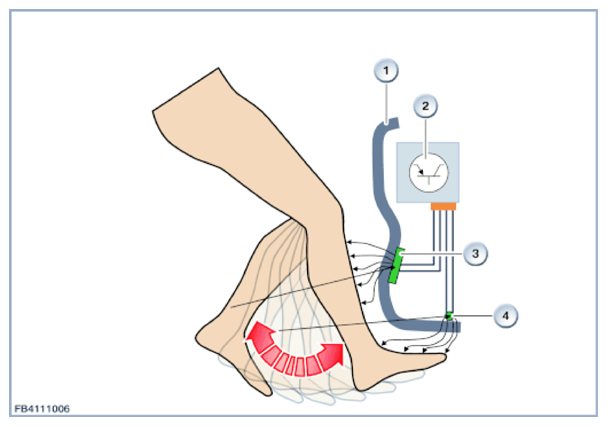

| Item | Explanation |
|---|---|
| 1 | Bumper |
| 2 | Evaluation electronics for contact-free tailgate opening |
| 3 | Top sensor |
| 4 | Bottom sensor |
The function is not carried out correctly under the following conditions:
- Foot movement outside the measuring range of the sensors (i.e. not in the center of the bumper)
- Foot movement across the vehicle (weaving movement)
- Bumper is touched during the foot movement
- Foot left under the bumper for too long
- Foot not extended far enough under the bumper
