Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

The center console operating facility has 2 plug connections (6-pin and 4-pin).

The location lighting (Terminal 58g) is provided by the footwell module (FRM).

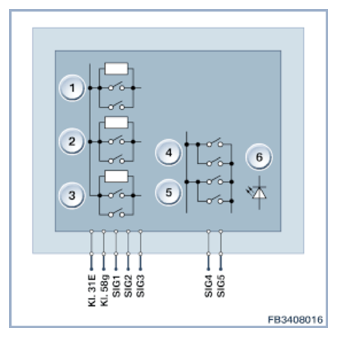

Fig 1: Center Console - Circuit Diagram
G09908709Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 DTC button
2 Dynamic Drive SPORT button
3 Dynamic Drive COMFORT button
4 Button for bumper camera
5 PDC button
6 PDC button function indicator light (LED)
PIN REFERENCE

Pin Explanation
Kl. 31 GND, terminal 31
Terminal 58g Locator lighting, terminal 58g
SIG1 DTC button signal
SIG2 SPORT signal
SIG3 COMFORT or ECO PRO signal
Pin Explanation
SIG4 Signal from bumper camera and PDC buttons
SIG5 PDC function indicator light (LED)
