Operating facility for light, turn signal/high beam switch as well as the operating facility for assist systems

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

The high-beam assistant is switched on and off at the turn signal/high beam switch. To do this, the light switch must be in the automatic driving lights control (Position A) or low-beam headlight position. An additional prerequisite is that the low-beam headlights are switched on due to sufficient darkness.

For vehicles without automatic driving lights control, the high-beam assistant can also be activated for brightness. The high-beam assistant switches on the low-beam headlights based on the ambient brightness.

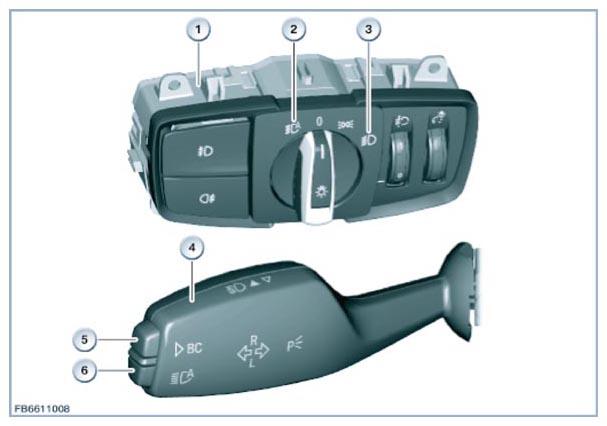

Fig 1: Identifying Turn Signal/High Beam Switch, On-Board Computer And High Beam Assistant Button
G09908665Courtesy of BMW OF NORTH AMERICA, INC.

Example shown: F30

Item Explanation
1 Operating facility for light
2 Automatic driving lights control position
3 Low-beam headlight position
4 Turn signal/high beam switch
5 On-board computer button
6 High beam assistant button

The lane departure warning and collision warning are switched on and off using the button in the driver assistance system operating facility.

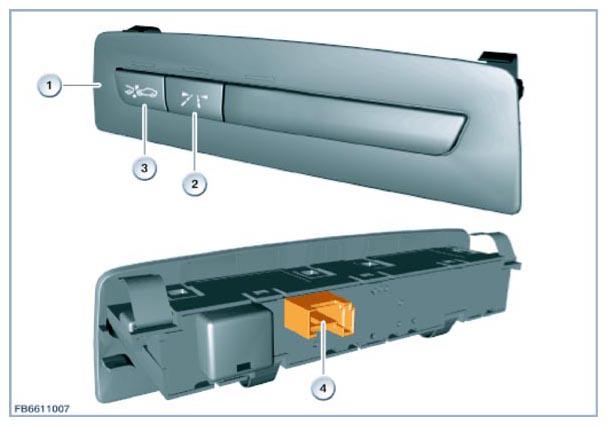

Fig 2: Identifying Lane Departure Warning And Collision Warning Button
G09908666Courtesy of BMW OF NORTH AMERICA, INC.

F30 shown

Item Explanation
1 Assist systems operating facility
2 Lane departure warning button
3 Button collision warning
4 4-pin plug connection
NOTE: If the vehicle is equipped with the latest generation of DSC (MK100), parts of the function logic that were previously calculated in the Integrated Chassis Management (ICM) are integrated in the DSC control unit. As a result, it was possible to omit the ICM control unit, among other items.

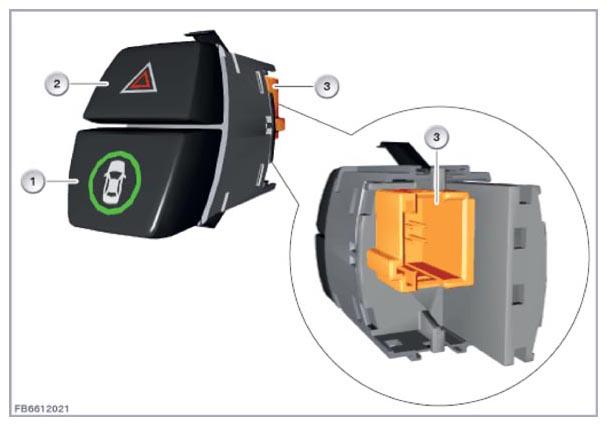

Fig 3: Identifying Hazard Warning Switch And Plug Connection
G09908667Courtesy of BMW OF NORTH AMERICA, INC.

F15 shown

Item Explanation
1 Assist systems operating facility
2 Hazard warning switch
3 six-pin plug connection

The driver assistance system operating facility is located in the center console by the hazard warning button. The driver assistance system operating facility is connected through a six-pin plug connection.
