KAFAS: Control unit for camera-based driver support systems
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The light points, light colors and light intensities picked up by the video camera are evaluated by the KAFAS control unit. The evaluation by the KAFAS control unit results in a switch-on or switch-off recommendation. The video camera is connected to the KAFAS control unit by means of a 12-pin line. The KAFAS control unit is connected to the PT-CAN.
The KAFAS control unit is supplied via terminal 15N by the front power distribution box.

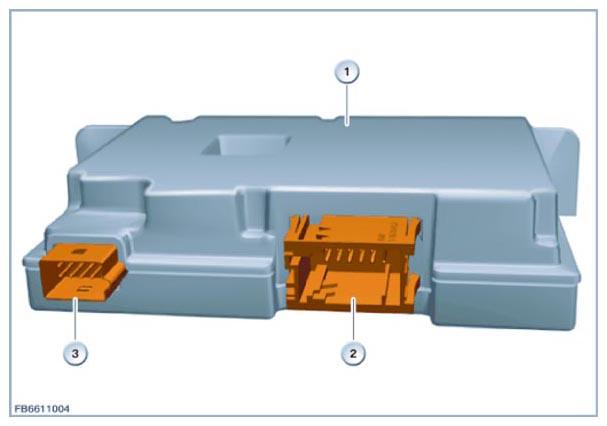

| Item | Explanation |
|---|---|
| 1 | Camera-based driver support systems camera control unit |
| 2 | 12-pin plug connection |
| 3 | 10-pin plug connection |
