Functional networking
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
A complex system network with distributed functions in other control units is necessary for implementation of the lane departure warning as well as the high-beam assistant.

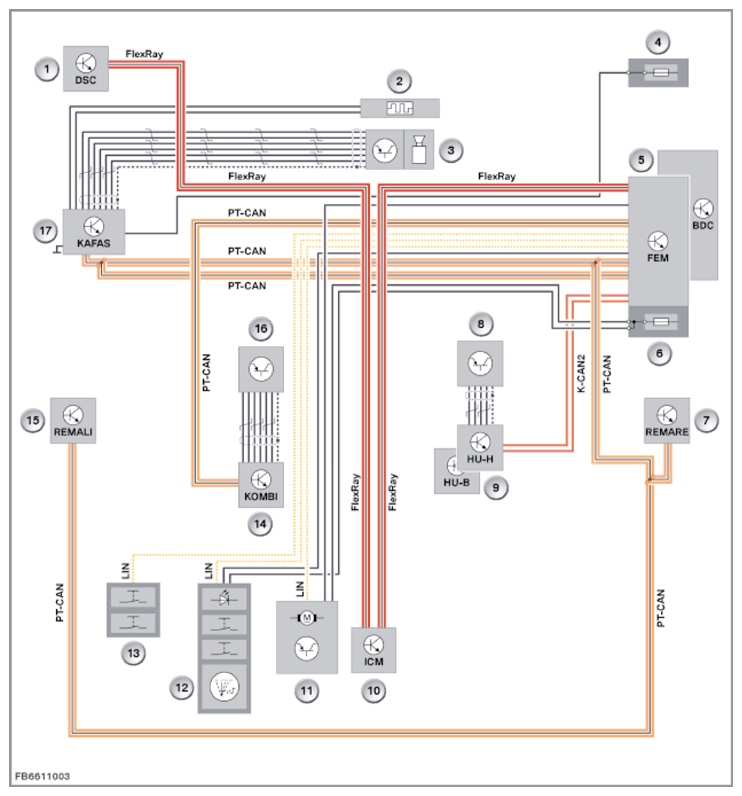

The following graphic shows the system network of the lane departure warning and the high-beam assistant using the example of the F2x, F3x, F15.
| Item | Explanation |
|---|---|
| 1 | Dynamic stability control (DSC) |
| 2 | Heating for KAFAS camera |
| 3 | KAFAS camera in the inside mirror |
| 4 | Front power distribution box, front passenger |
| 5 | Front Electronic Module (FEM) or Body Domain Controller (BDC) |
| 6 | Power distribution box |
| 7 | Reversible motorized automatic reel, right (REMABF), model-specific |
| 8 | Central information display |
| 9 | Headunit (HU-H, HU-B) |
| 10 | Integrated Chassis Management (ICM). Omitted if the vehicle is equipped with the latest generation of DSC (MK100). |
| 11 | Steering column switch cluster with vibration actuator |
| 12 | Operating facility for light |
| 13 | Assist systems operating facility |
| 14 | Instrument panel (KOMBI) |
| 15 | Reversible motorized automatic reel, left (REMAFA), model-specific |
| 16 | Head-Up Display, model-specific |
| 17 | Camera-based driver support systems camera control unit |

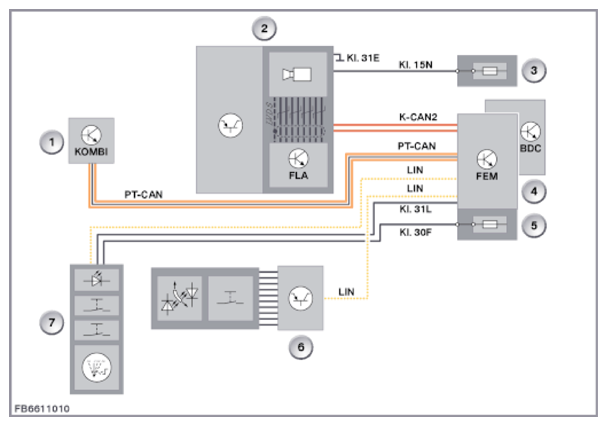

If only a high-beam assistant (5AC) is present, the system network is as follows for the example of F2x, F3x, F15:
| Item | Explanation |
|---|---|
| 1 | Instrument panel (KOMBI) |
| 2 | Inside mirror with camera and control unit high-beam assistant (FLA) |
| 3 | Front fuse and relay module |
| 4 | Front Electronic Module (FEM) or Body Domain Controller (BDC) |
| 5 | Front fuse and relay module |
| 6 | Steering column switch cluster |
| 7 | Operating facility for light |
