Video camera
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The video camera for the lane departure warning installed in the mirror base of the inside mirror monitors the near field of the vehicle. The video camera records the roadway up to approx. 40 meters in front of the vehicle and up to approx. 5 meters to the right and left at the sides of the vehicle. Image data are routed over a LVDS data line to the KAFAS control unit and evaluated. The control unit uses image processing to search in the imagery recorded by the video camera for possible existing lane and road markings.

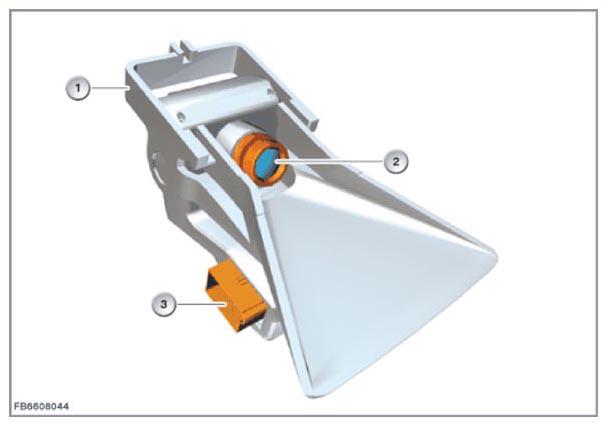

| Item | Explanation |
|---|---|
| 1 | Holder |
| 2 | Video camera |
| 3 | Plug connection 8-pin, LVDS data line |
