Hotel position switch
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The tailgate can be separately double-locked with the hotel position switch.
When the hotel setting is selected, the tailgate also stays locked after the vehicle is unlocked. That means: It is not possible to open the tailgate via the rear lid button in the passenger compartment, the rear lid button, outside, or the rear lid button at the infrared remote key or at the ID transmitter.
The hotel position switch has 2 switch positions:
- Switch position double-unlocked
- Switch position secured
In the switch position secured, the hotel position switch connects to ground. The change in status is recorded in the front electronic module (FEM).

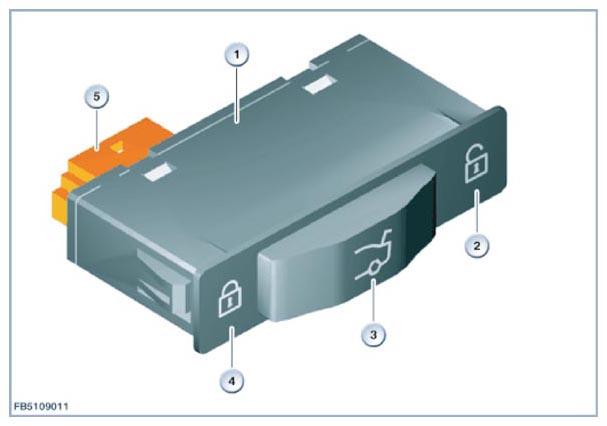

| Index | Explanation |
|---|---|
| 1 | Hotel position switch |
| 2 | Switch position double-unlocked |
| 3 | Slide switch |
| 4 | Switch position secured |
| 5 | Plug connection |
