Outer tailgate pushbutton
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The exterior tailgate switch allows the boot lid to be opened while the vehicle is unlocked and stationary (hotel position not applied).
The tailgate opens when the tailgate button is pressed. The outside rear lid button is directly connected to the junction box electronics (JBE). According to the signal evaluation, the junction box electronics activate the direct current motor of the release drive in the rear lid lock. This trips unlocking of the rear lid lock. Depending on the vehicle equipment, the tailgate opens due to spring force or electrically.

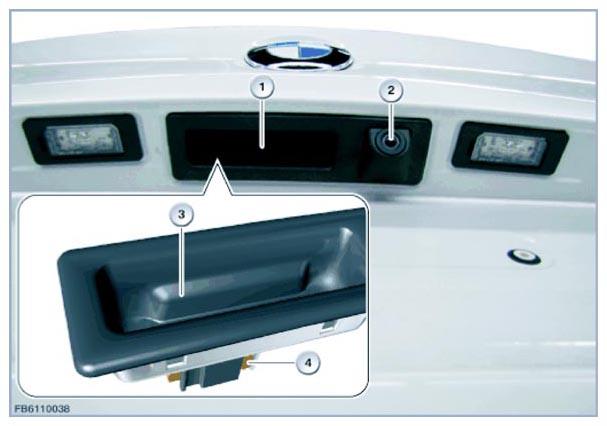

The following graphic shows the tailgate pushbutton on the outside using the example of F11.
| Index | Explanation |
|---|---|
| 1 | Outer tailgate pushbutton |
| 2 | Reversing camera (depending on equipment levels) |
| 3 | Luggage compartment/tailgate button |
| 4 | two-pin plug connection |
