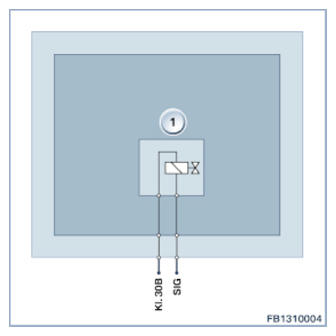

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The tank vent shutoff valve is a solenoid valve. The tank vent shutoff valve is open when in a de-energized state. The tank vent shutoff valve is supplied with voltage from terminal 30B.
| Index | Explanation |
|---|---|
| 1 | Tank vent shutoff valve |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Terminal 30B | Terminal 30, voltage supply |
| SIG | Activation, tank vent shutoff valve |
