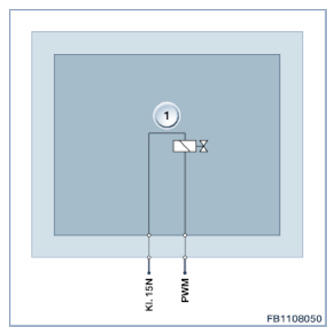

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The rail pressure sensor is connected by means of a 2-pin plug connection.
The rail pressure regulating valve is supplied with voltage via terminal 15N.
| Index | Explanation |
|---|---|
| 1 | Rail pressure regulating valve |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Kl. 15N | Terminal 15, voltage supply |
| PWM | Pulse-width modulated activation of the rail pressure regulating valve |
