Signal shape and setpoint values
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

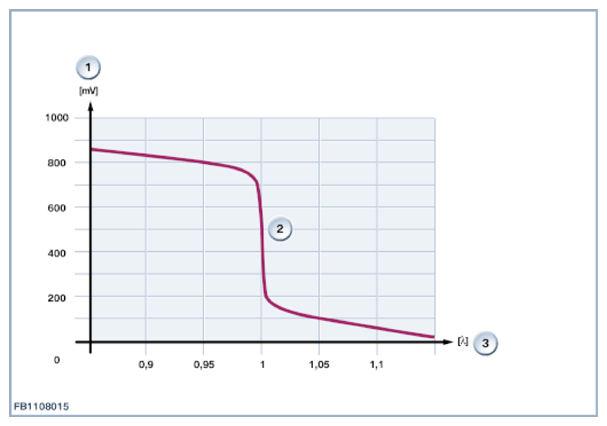

Thanks to a residual oxygen content that equates to a mixture composition of lambda = 1, the voltage measurement on the measuring cell indicates a voltage of 450 millivolts. When lambda = 1, the composition of the exhaust gas of the different material is ideal.
| Item | Explanation |
|---|---|
| 1 | Voltage to measuring cell |
| 2 | Signal path |
| 3 | Lambda |
Observe the following setpoint values for the monitoring sensor:
| Variable | Value |
|---|---|
| Lower voltage range of oxygen sensor heating | 10.7 to 16.5 V |
| Voltage of oxygen sensor heating in warm-up phase | 4 V |
| Operating temperature | ≥ 350 °C |
| Heating resistance at 20 °C | 9 Ω ±2 Ω |
| Maximum pump current | 2.2 to 2.6 Ω |
