Integrate version: Natural Vacuum Leak Detection temperature sensor and pressure switch
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
In the integrated version, the NVLD is just one component. The temperature sensor and pressure switch are integrated. The engine control communicates with the NVLD through a data line connecting the two. The NVLD supplied with terminal 30F. The Natural Vacuum Leak Detection (temperature sensor and pressure switch) are located on the carbon canister housing.

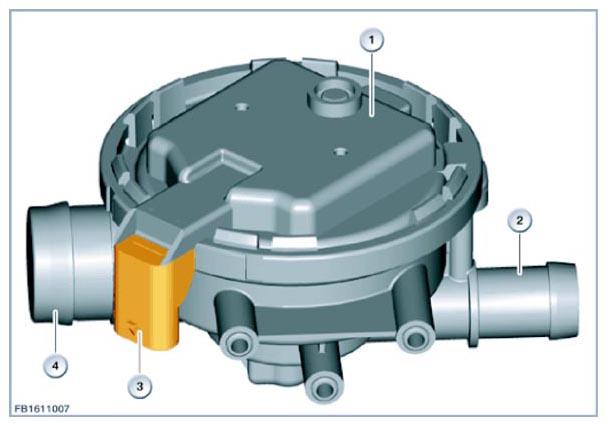

Fig 1: Identifying Vacuum Leak Detection Temperature Sensor And Pressure Switch Components (Integrate Version)
| Index | Explanation |
|---|---|
| 1 | Temperature sensor and pressure switch |
| 2 | to carbon canister |
| 3 | Three-pin plug connection |
| 4 | to fresh air filter |
