Mechanical troubleshooting manual for the tank leak diagnosis: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

This troubleshooting manual indicates all fault locations that are currently known where a leak might occur.

Check connections on the fuel tank and lever sensor for leaks .

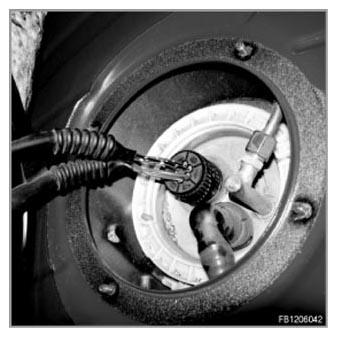

Fig 1: Checking Connections On Fuel Tank And Lever Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Check the connections on the carbon canister and check the carbon canister for leaks, if applicable .

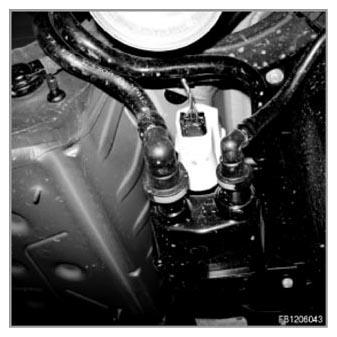

Fig 2: Checking Connections On Carbon Canister

Courtesy of BMW OF NORTH AMERICA, INC.
