Functional check on electric EGR valve

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Removing the cover from the EGR valve  .

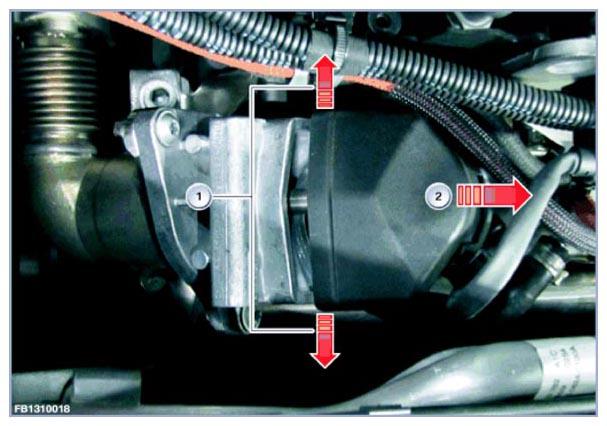

Fig 1: Removing Cover From EGR Valve
G09908977Courtesy of BMW OF NORTH AMERICA, INC.

M57 shown

  1. Release cover catch on the side.
  2. Remove cover.
