Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

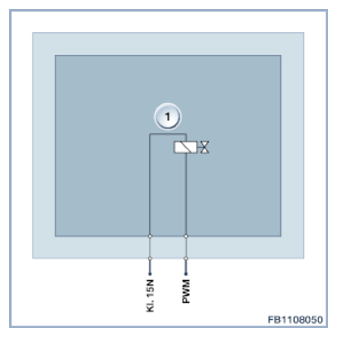

The fuel-quantity control valve is connected with a 2-pin plug.
The power supply for the fuel-quantity control valve originates at Terminal 15.
| Index | Explanation |
|---|---|
| 1 | Fuel quantity control valve |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Kl. 15N | Terminal 15, voltage supply |
| PWM | Pulse-width-modulated control-activation of the fuel-quantity control valve |
