DDE control unit with fuel presupply pressure control function
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The fuel presupply pressure control function is integrated in the DDE control unit. The DDE determines the current actual pressure in the fuel presupply pressure system via the fuel pressure and temperature sensor. The DDE calculates from several input variables the control variable which is required to adjust the fuel presupply pressure. The fuel presupply pressure is adjusted to a pressure of 4.8 - 5.0 bar (absolute).
The input variables relevant to determining the control variable are:
- Actual pressure in the fuel presupply pressure system
- Engine speed
- Fuel injection rate
The control variable is sent in the form of a CAN message to the fuel pump control module (EKPS). The control variable is sent in the unit l/h. The value range is 0-254 l/h.

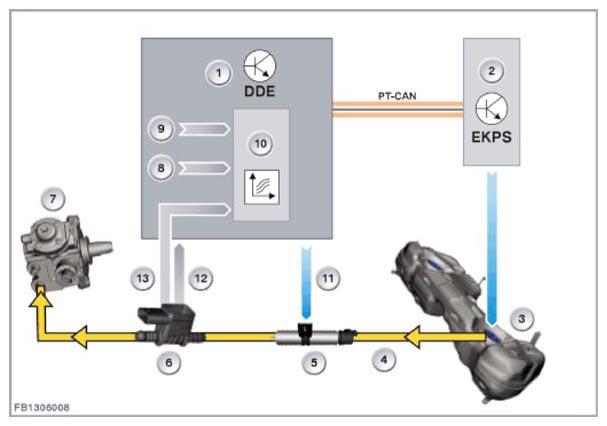

| Item | Explanation |
|---|---|
| 1 | DDE control unit |
| 2 | EKPS control unit |
| 3 | Fuel tank |
| 4 | Fuel delivery line |
| 5 | Fuel filter with fuel heating unit |
| 6 | Fuel pressure and temperature sensor |
| 7 | High pressure pump |
| 8 | Input signal, engine speed |
| 9 | Input signal, fuel injection rate |
| 10 | Fuel presupply pressure control |
| 11 | Activation, fuel heating unit |
| 12 | Signal, fuel temperature |
| 13 | Signal, fuel presupply pressure |
