Clutch module
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
On vehicles with manual gearboxes, the clutch module at the clutch pedal picks up the clutch position:
- Clutch pressed: clutch switch open
- Clutch not pressed: clutch switch closed.
The clutch module comprises the clutch switch and evaluation electronics.

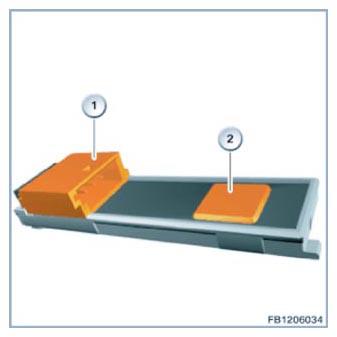

| Index | Explanation |
|---|---|
| 1 | 4-pin plug connection |
| 2 | Clutch pedal sensor |
Among other things, the Digital Engine Electronics (DME) has a signal line. When the clutch pedal is not pressed, the clutch module delivers 12 Volts and when the clutch pedal is pressed it delivers 0 Volts.
The clutch module is used as an input signal for the automatic engine start-stop. Two states are picked up:
- 10 percent operated
- 90 percent operated.

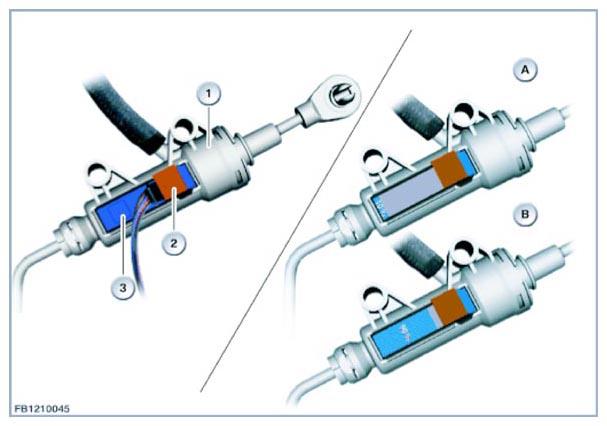

| Index | Explanation |
|---|---|
| A | Clutch pedal 10% operated |
| B | Clutch pedal 90% operated |
| 1 | Clutch module |
| 2 | 4-pin plug connection |
| 3 | Clutch pedal sensor |
