Fuel pump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

The electric fuel pump is an in-tank pump. The maximum fuel delivery pressure depends on the low-pressure system.

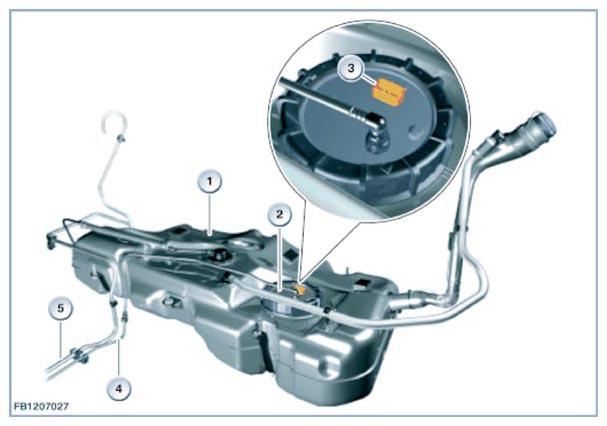

Fig 1: Identifying Fuel Tank Components
G09908878Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Fuel tank
2 Fuel pump
3 Plug connection
4 Fuel feed
5 Fuel return line (diesel)
