Functional description
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The engine control activates the electric changeover valve. This switches the partial vacuum in the system through to the partial-vacuum canister. The partial vacuum applied opens the bypass flap. The partial vacuum applied opens the bypass flap. On ventilation of the diaphragm canister (vacuum system depressurized), the bypass flap is closed by a spring.

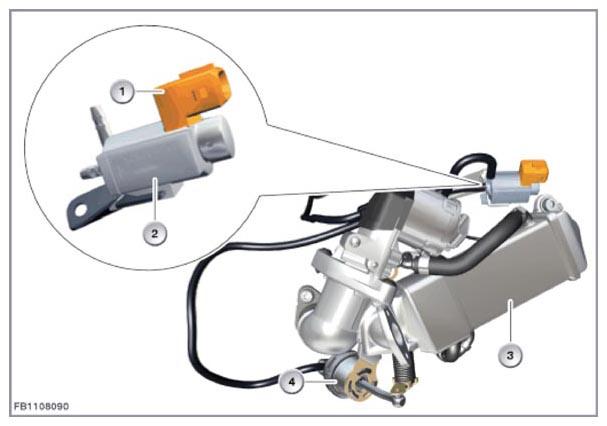

| Item | Explanation |
|---|---|
| 1 | two-pin plug connection |
| 2 | Electric changeover valve exhaust flap |
| 3 | EGR cooler |
| 4 | Vacuum unit |
