F15 overview, N57 exhaust system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

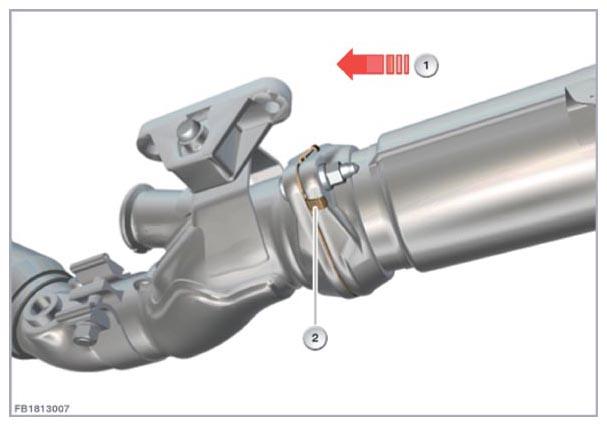

Fig 1: Overview Of Exhaust System (F15)
G09908721Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Direction of travel
2 Mixer retaining claws, the mixer is installed opposite to the direction of travel.
