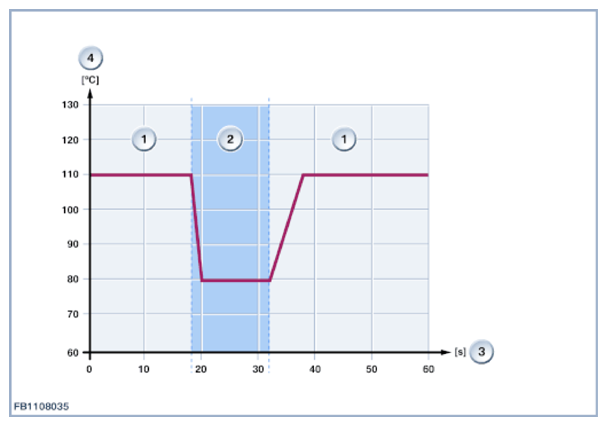

Temperature profile and setpoint values
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The engine control activates the heating element via a characteristic map depending on the current driving situation.
| Index# | Explanation | Item | Explanation |
|---|---|---|---|
| 1 | Heater resistor not activated | 2 | Heater resistor activated |
| 3 | Time | 4 | Coolant temperature |
Please note the following setpoint values for the coolant temperature:
| Variable | Value |
|---|---|
| Voltage range | 9 to 16 volts |
| Opening temperature not heated | 97 °C |
| Minimum stroke | 8 mm |
| Minimum stroke in control range | 4, 5 mm |
| Maximum output current | 20 mA |
| Temperature range | -40 °C to 150 °C |
