Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

The characteristic map thermostat is connected via a two-pin plug connection.

The characteristic map thermostat is supplied with 12 V vehicle voltage by the engine control. Activation occurs by the engine control on the earth side.

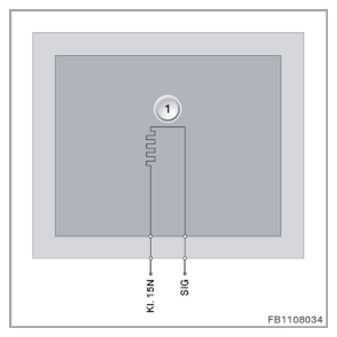

Fig 1: Heating Resistor - Circuit Diagram
G09908717Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Heating resistor in characteristic map thermostat
PIN REFERENCE

Pin Explanation
Terminal 15N 12 Volts, power supply
SIG Activation heating resistor
