Localization of the chafe marks

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

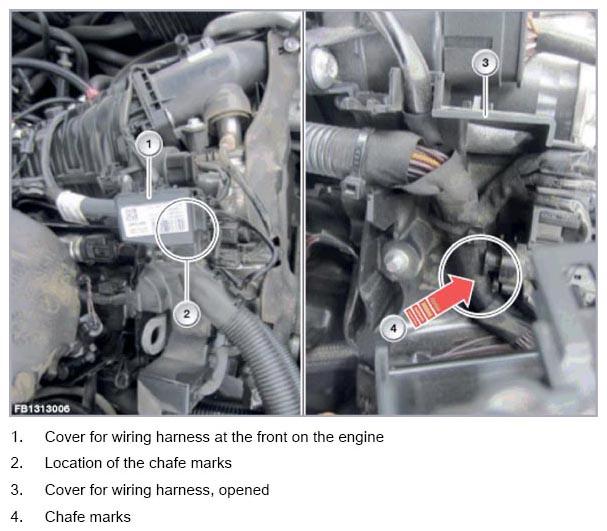

Fig 1: Locating Engine Wiring Harness Chafe Marks
G09908711Courtesy of BMW OF NORTH AMERICA, INC.

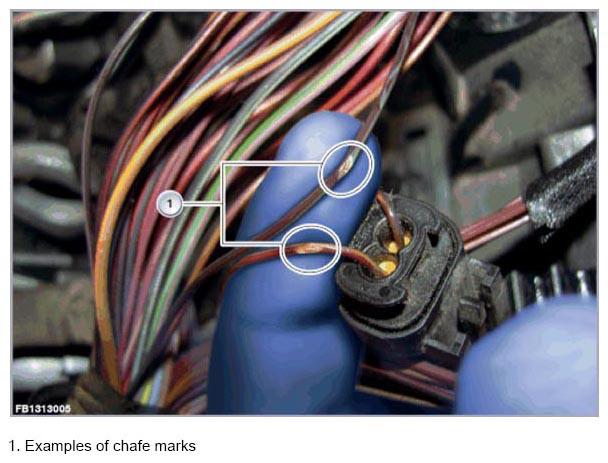

Fig 2: Examples Of Chafe Marks On Engine Wiring Harness (1 Of 2)
G09908712Courtesy of BMW OF NORTH AMERICA, INC.

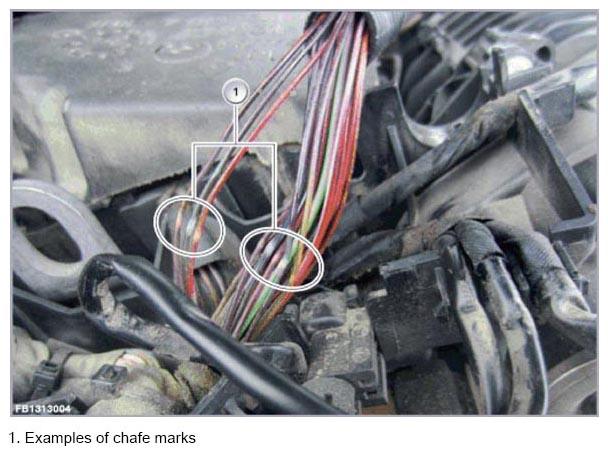

Fig 3: Examples Of Chafe Marks On Engine Wiring Harness (2 Of 2)
G09908713Courtesy of BMW OF NORTH AMERICA, INC.
