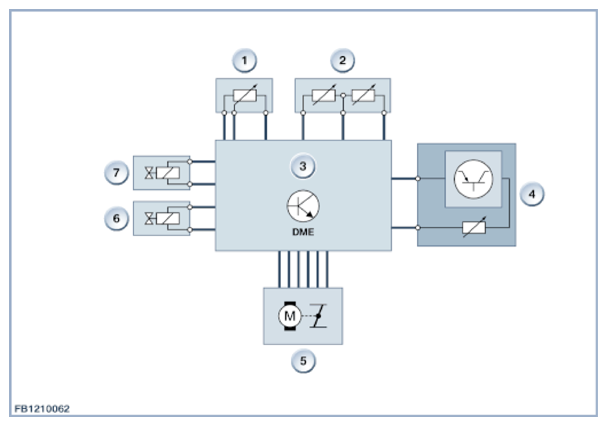

System overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of BMW OF NORTH AMERICA, INC.
| Item |
Explanation |
| 1 |
Intake-manifold pressure sensor downstream of throttle valve |
| 2 |
Intake air temperature pressure sensor |
| 3 |
Digital engine electronics |
| 4 |
Hot-film air mass meter |
| 5 |
Electromotive throttle actuator |
| 6 |
Blow-off valve |
| 7 |
Pressure converter |
