Intake manifold
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

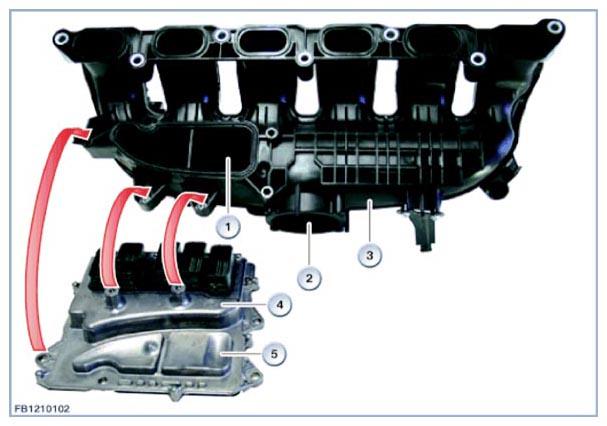

The Digital Motor Electronics (DME) is connected to the differentiated air intake system. which means that intake air is also used to cool the Digital Motor Electronics (DME).
| Item | Explanation |
|---|---|
| 1 | Connecting flange for cooling of Digital Motor Electronics (DME) |
| 2 | Connecting flange, throttle valve |
| 3 | Air intake system |
| 4 | Digital engine electronics |
| 5 | Cooling fins of Digital Motor Electronics (DME) |
