Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The coolant shutoff valve is opened currentless.

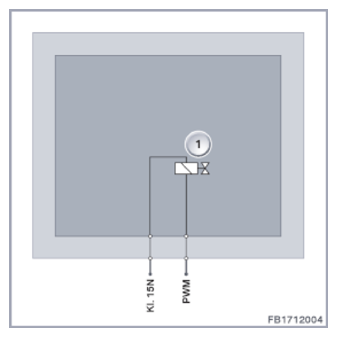

The coolant shutoff valve is connected to the vehicle electrical system by means of a 2-pin plug connection. The front power distribution box supplies the coolant shutoff valve with terminal 15N.
| Index | Explanation |
|---|---|
| 1 | Coolant shutoff valve |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Terminal 15N | Terminal 15N supply |
| PWM | Activation of coolant shutoff valve |
