Functional description
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The electric coolant pump of the low temperature EGR cooler is a single stage radial pump.
The coolant enters the coolant pump in an axial plane, while the discharge is radial relative to the road wheel's rotational axis. The auxiliary water pump is powered by a brushless electric motor. The engine control (DDE) activates the coolant pump.

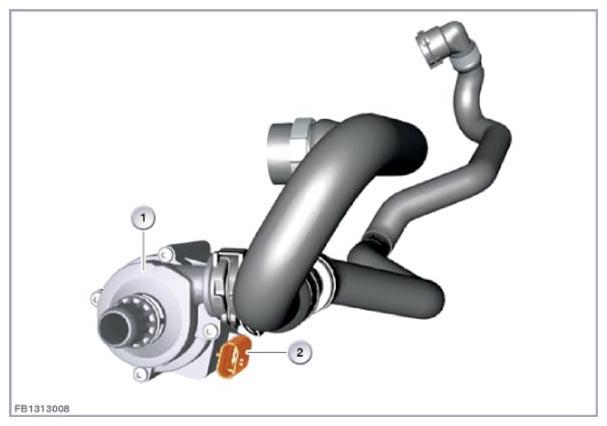

| Item | Explanation |
|---|---|
| 1 | Coolant pump, low temperature exhaust-gas recirculation cooler |
| 2 | three-pin plug connection |
