84 10 810 Remove and install/replace the Telematic Communication Box (TCB)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe the INFORMATION ON PROTECTION FROM ELECTROSTATIC DISCHARGE
.
NOTE:
Comply with notes and instructions on HANDLING OPTICAL FIBRE
.
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD .
- Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on left.
Removal:

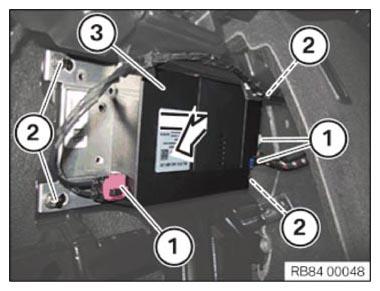

Unlock and disconnect all connectors (1).
Release all nuts (2).

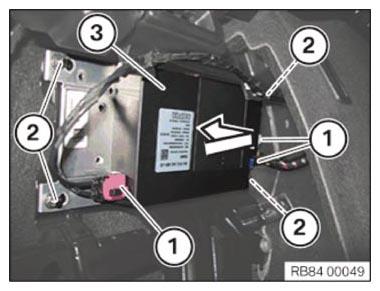

Remove the TCB (3) in direction of arrow.
Installation:
Install the TCB (3) in direction of arrow.
Tighten down nuts (2).
Tightening torque: 3, 3 Nm .
Connect all connectors (1).
Replacement:
- Carry out VEHICLE PROGRAMMING/ENCODING
