84 10 800 Removing and installing Combox

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrical damage (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRE .

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD
Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on left

NOTE: For a better view, the left luggage compartment trim panel has been removed.

Unlock plug connections (1) and disconnect.

Unfasten aerial connector (2) and disconnect.

Release all nuts.

Carefully remove Combox telematics (3).

Installation note:

Observe color coding of aerial connectors (2).

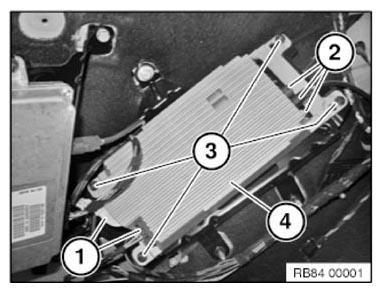

Fig 1: Identifying Combox Telematics, Color Coding Of Aerial Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING

For vehicles with Teleservices optional equipment:

Update services via menu in the central information display.
