84 10 700 Removing and installing/replacing base plate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR CENTER CONSOLE STORAGE COMPARTMENT
Remove CENTER CONSOLE STORAGE COMPARTMENT

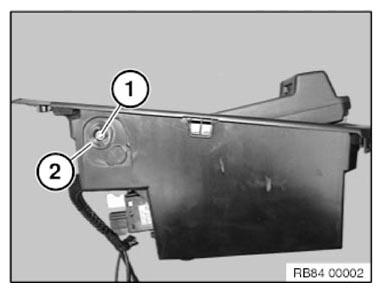

Release screw (1) and remove guide (2).

Fig 1: Identifying Guide Screw

Courtesy of BMW OF NORTH AMERICA, INC.

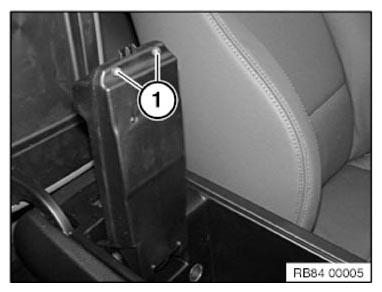

Release screw (1) and remove guide (2).

Remove base plate (3) upwards.

Fig 2: Identifying Base Plate, Guide And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure electrical routing is correct during installation of base plate.

Installation note:

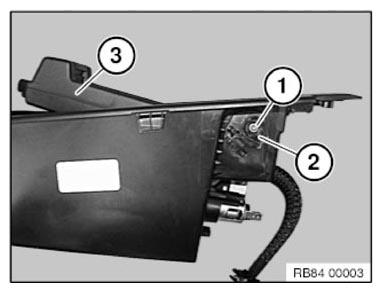

Stop pad (1) on lower section of base plate must not be damaged or missing.

Fig 3: Identifying Base Plate Stop Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

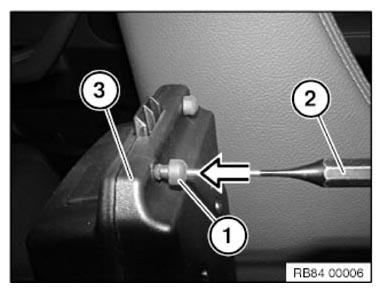

Preassemble stop pad (1) with punch (2) Ø 2.0 mm.
Coat mounting area with lubricant.
Insert stop pad (1) for base plate (3) towards direction of arrow.
