65 50 030 Removing and installing/replacing TV module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Follow notes for HANDLING OPTICAL FIBRES .

Necessary preliminary work:

Disconnect NEGATIVE BATTERY CABLE
Remove FLAP IN LUGGAGE COMPARTMENT PANEL on left

Release screws at marked points.

Remove TV module (1) from the bracket.

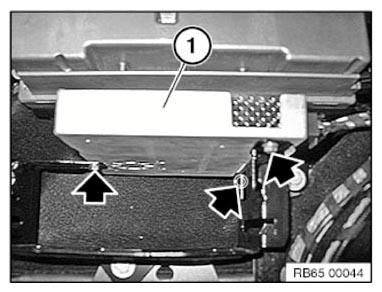

Fig 1: Identifying TV Module From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and (2) and disconnect.

Remove TV module (3).

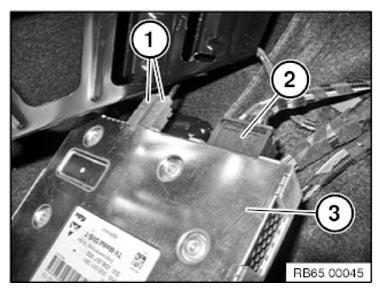

Fig 2: Identifying TV Module Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
