65 24 020 Removing and installing/replacing blocking circuit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Lower HEADLINER .

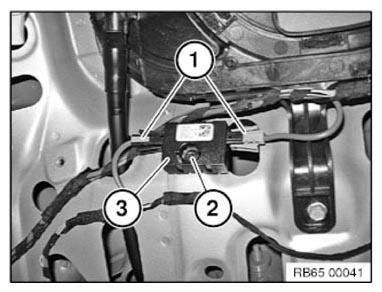

Unlock plug connections (1) and disconnect.
Release screw (2).
Remove blocking circuit (3).
Installation note:
Ensure rejector circuit (3) is fitted correctly.
