65 12 072 Removing and installing (replacing) amplifier (Top HiFi system)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary work:

Disconnect NEGATIVE BATTERY CABLE
Remove FLAP IN LUGGAGE COMPARTMENT PANEL on left

Release screw (1).

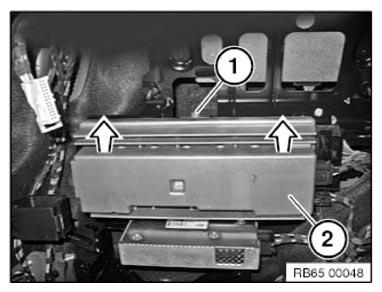

Release amplifier (2) out of mounting bracket by pulling upward.

Fig 1: Releasing Amplifier Out Of Mounting Bracket

G09950087

Courtesy of BMW OF NORTH AMERICA, INC.

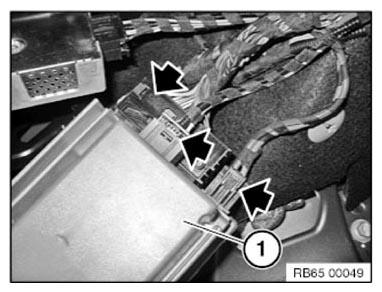

Unlock plug connections and disconnect.

Remove amplifier (1).

Fig 2: Locating Amplifier Plug Connections

G09950088

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture for example purposes.

Installation note:

Tabs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

Fig 3: Identifying Amplifier Tabs And Guide

G04797335

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING .
