65 12 071 Removing and installing/replacing amplifier (HiFi)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD protection).
NOTE:
Comply with notes and notes on HANDLING OPTICAL FIBRES
.
Necessary preliminary work:
- Disconnect BATTERY EARTH LEAD
- Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on left
Removal:

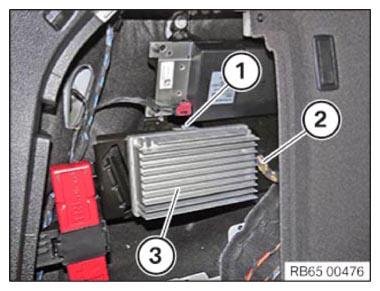

Release screw (1).
Unlock and disconnect connector (2).
Disengage amplifier (3) upwards out of holder.
Installation:
NOTE:
Picture for example purposes.
NOTE:
Tabs (1) must be correctly inserted into guide (2).
Check amplifier (3) for secure fit.
Engage amplifier (3) downwards into holder.
Tighten down screw (1).
Connect connector (2) and lock.
Required reworking:
- Connect BATTERY EARTH LEAD
- Install FLAP IN LEFT LUGGAGE COMPARTMENT TRIM PANEL
Replacement:
Carry out VEHICLE PROGRAMMING AND ENCODING .
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD protection).
NOTE:
Comply with notes and instructions on HANDLING OPTICAL FIBRES
.
Necessary preliminary work:
- Disconnect NEGATIVE BATTERY CABLE
- Remove FLAP IN LUGGAGE COMPARTMENT PANEL ON LEFT

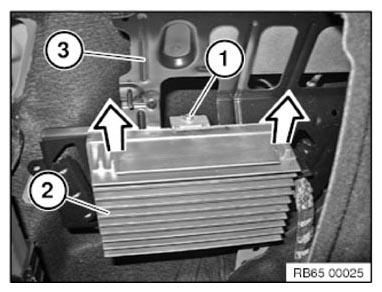

Release screw (1).
Detach amplifier (2) in direction of arrow from holder (3).

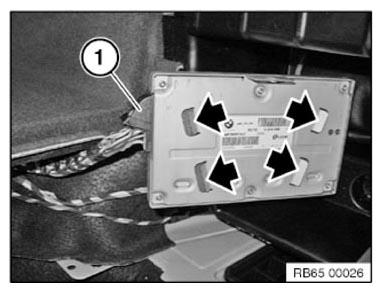

Unfasten plug connection (1) and disconnect.
Tabs at marked points must engage correctly in bracket.
Replacement:
Carry out VEHICLE PROGRAMMING AND ENCODING .
