65 77 720 Removing and installing (replacing) left B-pillar sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: NOTE AIRBAG SAFETY INSTRUCTIONS !
Incorrect handling can lead to airbag deployment and cause injury.

Necessary preliminary work:

Disconnect BATTERY CABLE
Remove TRIM PANEL FOR DOOR POST .

Release screw (3).

Tightening torque 65 77 3AZ .

Feed out the B-pillar sensor (1) downwards.

Unlock plug connection (4) and disconnect.

Installation note:

Make sure sensor (1) is mounted without play.

Replace sheet metal nut (2), if applicable.

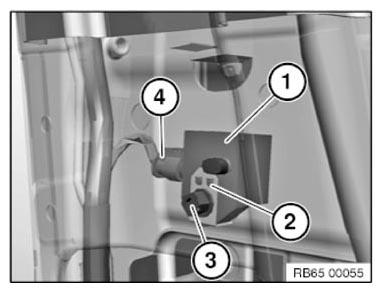

Fig 1: Identifying Sheet Metal Nut, B-Pillar Sensor And, Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
