65 77 532 Removing and installing/replacing front left sensor (US version only)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove FRONT LEFT WHEEL ARCH COVER

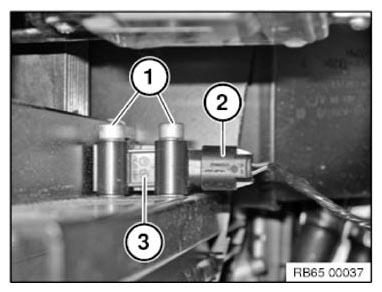

Release screws (1).
Tightening torque 65 77 2AZ .
Unfasten plug connection (2) and disconnect.
Remove sensor (3).
Installation note:
Make sure sensor (3) is in correct installation position.
Sensor surface must point inwards.
