65 77 016 Removing and installing/replacing airbag control unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: NOTE AIRBAG SAFETY REGULATIONS !
Incorrect handling can activate airbag and cause injury.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD
Remove INSTRUMENT PANEL TRIM, BOTTOM RIGHT

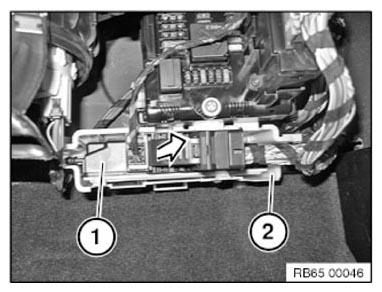

Remove airbag control unit (1) from mounting bracket (2) in direction of arrow.

Fig 1: Removing Airbag Control Unit From Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

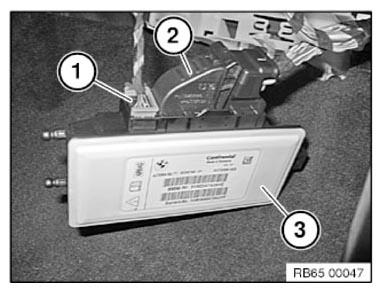

Unlock plug connections (1) and (2) and disconnect.

Remove airbag control unit (3).

Fig 2: Identifying Airbag Control Unit And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
