66 53 060 Removing and installing/replacing Top View camera on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROTECTIVE CAP FROM EXTERIOR MIRROR

NOTE: Shown with exterior mirror removed for purposes of clarity.

Release screws (1).

Unfasten plug connection (2) and disconnect.

Remove lower housing section (4).

Installation note:

Make sure lower housing section (4) is correctly fitted in guide (3).

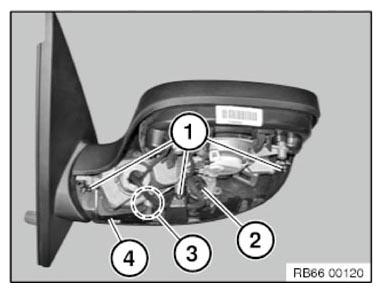

Fig 1: Identifying Lower Housing Section, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove Top View camera (2).

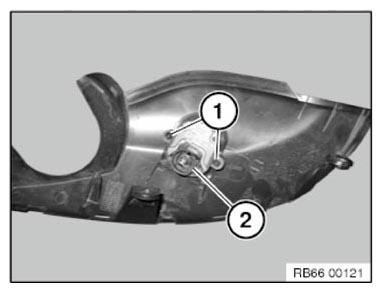

Fig 2: Identifying Top View Camera And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Use of a special tool is no longer required.

Calibration:

Calibration is performed via BMW diagnosis system:
- Service function
- Body
- All-round vision camera
- Calibration of all-round vision camera
