66 33 008 Removing and installing/replacing park assist control unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Removal:

Release clips (1).

Fold up storage shelf (2).

Fig 1: Identifying Storage Shelf And Clips

G09950153

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Pull Parking Maneuvering Assistant control unit (2) out upwards.

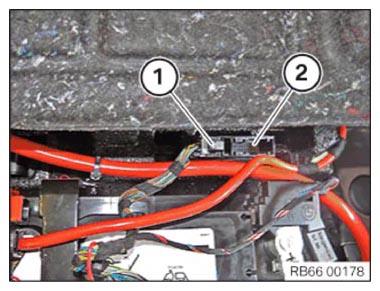

Fig 2: Identifying Parking Maneuvering Assistant Control Unit And Connector

G09950200

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert Parking Maneuvering Assistant control unit (2) downwards.

Connect and lock connector (1).

Fig 3: Identifying Parking Maneuvering Assistant Control Unit And Connector

G09950200

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position storage shelf (2).

Lock clips (1).

Fig 4: Identifying Storage Shelf And Clips

G09950153

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Replacement:

Carry out PROGRAMMING/ENCODING .
