41 14 531 Replacing Engine Support/Front Left Side Frame Connection (Front Left Wheel Arch Removed)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Following new body parts are required (refer to OVERVIEW OF CONSUMABLES ):

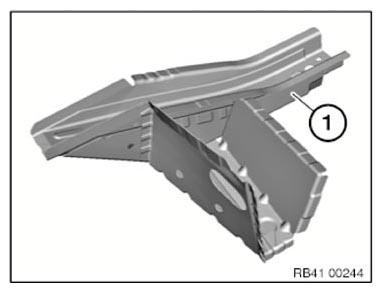

(1) Engine support, rear

Fig 1: Identifying Engine Support, Rear
Courtesy of BMW OF NORTH AMERICA, INC.

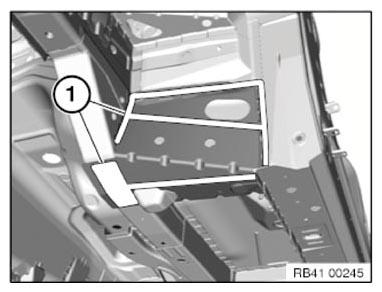

Removing the engine support side frame connection:

Open welded connections in areas (1).

Fig 2: Identifying Engine Support Side Frame Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

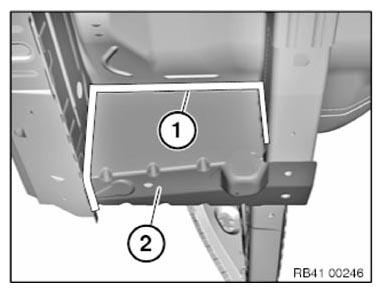

Open welded connections in areas (1).

Remove engine support/side frame (2).

Fig 3: Identifying Engine Support/Side Frame Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

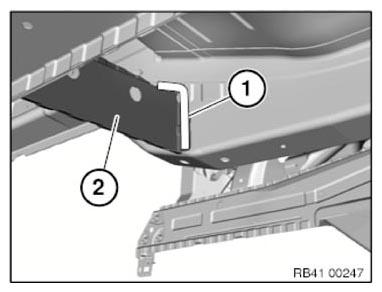

Open welded connections in areas (1).

Remove reinforcement (2).

Fig 4: Identifying Reinforcement Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

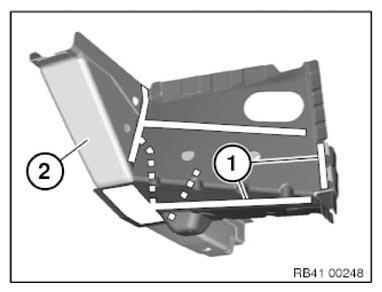

New part preparation

Open welded connections in areas (1).

Remove engine support (2).

Fig 5: Identifying Engine Support Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the engine support side frame connection

Install and weld new parts.

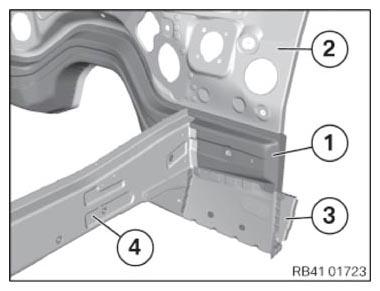

NOTE: First, the reinforcement of the engine support side frame connection must be installed and welded for reasons of accessibility as a separate component.

NOTE: The bulkhead cross member (1) is filled with low-flammable cavity foam.

In case of smoke formation, stop the welding procedure and cool the welded area with compressed air if applicable.

(2) Bulkhead
(3) Connection engine support side frame
(4) Engine support

Fig 6: Identifying Bulkhead Cross Member, Bulkhead, Connection Engine Support Side Frame And Engine Support
Courtesy of BMW OF NORTH AMERICA, INC.
