41 21 203 Replace Outer Left B-Pillar

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Procedure OBSERVE repair stage 3!

Read contents of BODY, GENERAL .

Use only an approved SPOT-WELDING APPARATUS for repairs!

Following new body parts are required (see OVERVIEW OF CONSUMABLES ):

(1) A-pillar with entrance
Shaped part, B-pillar bottom outside

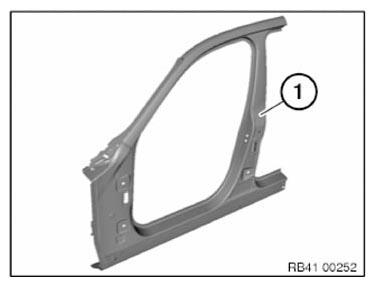

Fig 1: Identifying A-Pillar With Entrance
Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

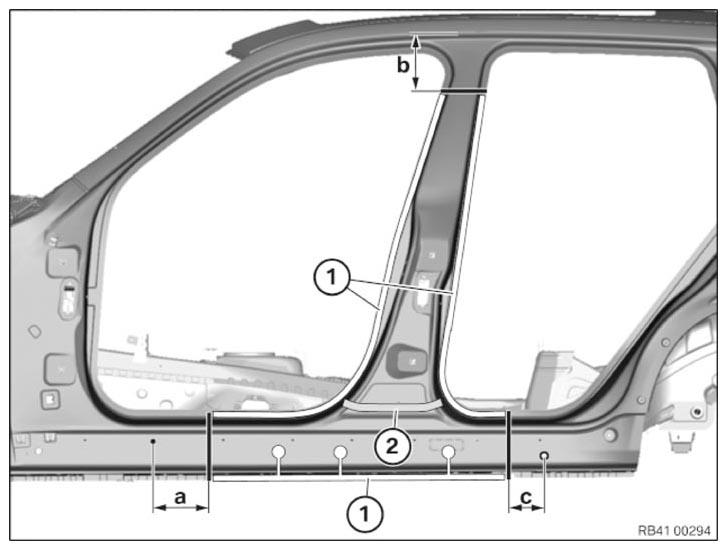

Fig 2: Identifying A-Pillar From Cavity Sealing

G09947799

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimension a = approx. 180 mm after center point of Ø 8 mm hole.

Dimension b = approx. 175 mm from edge of roof frame.

Dimension c = approx. 180 mm from center point of Ø 20 mm hole.

Open welded connections in areas (1).

Release A-pillar from cavity sealing (2) and remove.

Preparation of new part:

Mark severance cuts on new parts in accordance with severance cuts on vehicle and cut.

Prepare REINFORCEMENT PLATES at severance cuts.

Installation:

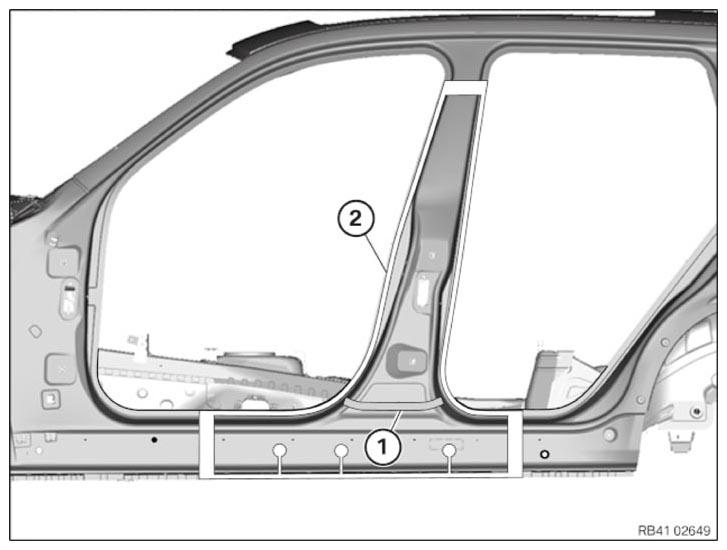

Fig 3: Identifying Sealant Applying Area On Cavity Sealing

G09947800

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealant to cavity sealing . See 41 00... INSTALLING CAVITY SEALING (EXPANDED) or 41 00... INSTALLING CAVITY SEALING (NOT EXPANDED) (1).

Install new parts and reinforcement plates and weld to designated area (2).
