37 12 090 Removing and installing rear left or right spring strut shock absorber (EDC)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: With full spring deflection, the coil spring may touch the gaiter, depending on the design.

This is not a fault!

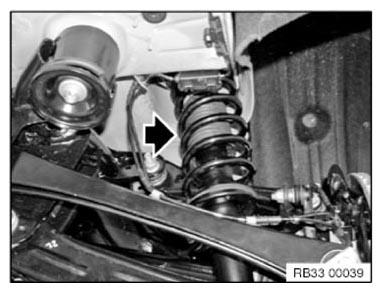

Fig 1: Locating Rear Left/Right Spring Strut Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Work is identical to REMOVING AND INSTALLING SPRING STRUT !
