37 14 566 Removing and installing/replacing control unit for Vertical Dynamic Control

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove ignition key.
Disconnect BATTERY NEGATIVE CABLE .
Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .

Undo screw (1), release expanding rivets (2) and remove storage compartment.

Fig 1: Identifying Storage Compartment Expanding Rivets With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Unlock connector (2) and remove.

Remove control unit.

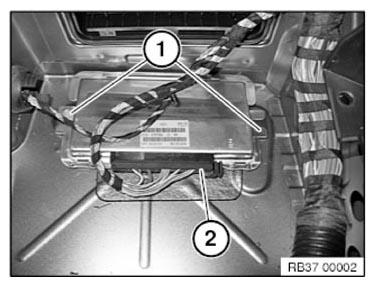

Fig 2: Identifying Control Unit Connector And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Replacement only: Carry out PROGRAMMING/ENCODING .
Start up the VDM with the aid of the diagnosis system.
Replacement only: Carry out RIDE HEIGHT ADJUSTMENT .
