52 26 411 Replacing backrest cover for left rear seat

Special tools required:

• 52 0 050

Necessary preliminary work:

• Remove REAR SEAT BACKREST , left
• Remove GUIDE SLEEVES

Depending on equipment specification:

Ohne SA 413: Unclip cover (1) for combined roller cover mount.

Mit SA 413: Unclip trim cover for combined roller cover mount.

Fig 1: Identifying Cover For Combined Roller Cover Mount

Courtesy of BMW OF NORTH AMERICA, INC.

With option SA 413:

Release screws (1).

Tightening torque 52 26 09AZ .

Remove mount for combined roller cover.

Fig 2: Identifying Combined Roller Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Gently slide lock finisher (1) on side edge of backrest downwards and unclip to one side.

Gently slide lock finisher on rear side towards middle.

Unclip and remove lock finisher.

Fig 3: Removing Lock Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs on the trim cover for the lock must not be damaged.

Replace defective trim cover for lock.

Fig 4: Identifying Cover Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Insert plastic wedge from outside between cover (1) and lock.

Carefully lever outer side of cover (1) with plastic wedge upwards out of catch.

Lever inner side of cover (1) with plastic wedge out of catch.

Remove cover upwards.

Fig 5: Inserting Plastic Wedge Between Cover And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 52 26 06AZ .

Lift out trim.

Fig 6: Locating Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Feed belt strap out of trim.

Fig 7: Folding Belt Strap Out Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

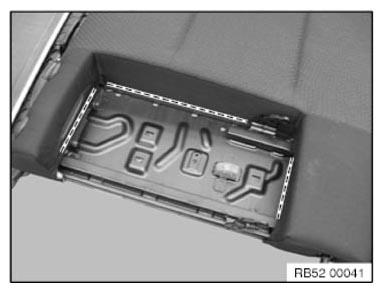

Carefully unclip strip (1) for channel cover along the marking on left and right.

Fig 8: Removing Channel Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms must not be damaged

Replace defective strip for channel cover.

Fig 9: Identifying Defective Strip For Channel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Use plastic wedge to unclip front center armrest trim cover (1).

Fig 10: Removing Front Center Armrest Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

None of the retaining lugs on trim must be damaged.

Replace defective center armrest cover.

Fig 11: Identifying Defective Center Armrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage welt in marked area from metal clamps.

Fig 12: Identifying Metal Clamps Welt Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 52 26 02AZ .

Remove outer mount (2).

Fig 13: Identifying Outer Mount With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in marked area from backrest frame.

Remove backrest cover with padding from backrest frame.

Fig 14: Removing Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

• Release all clamps in marked area
• Remove cover from upholstery
• Remove all remnants of retainers from cover and padding
  Fig 15: Identifying Clamps In Marked Area

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in backrest cover
5. Backrest cover
   Fig 16: Inserting Clamp With Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

• Pull all trim wires out of cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets
  Fig 17: Identifying Cover Trim Wires

  Courtesy of BMW OF NORTH AMERICA, INC.
