54 10 250 Removing and installing rear glass slide/tilt sunroof panel
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use
Necessary preliminary work:
IMPORTANT:
A second person is required to help in removing the glass slide/tilt sunroof panel.
Do not place glass slide/tilt sunroof panel on seals.
Do not place glass slide/tilt sunroof panel on seals.
Prepare a support on which to place the pane in order to prevent scratching the surface of the glass.
IMPORTANT:
An assistant must secure the glass slide/tilt sunroof panel to prevent it dropping.

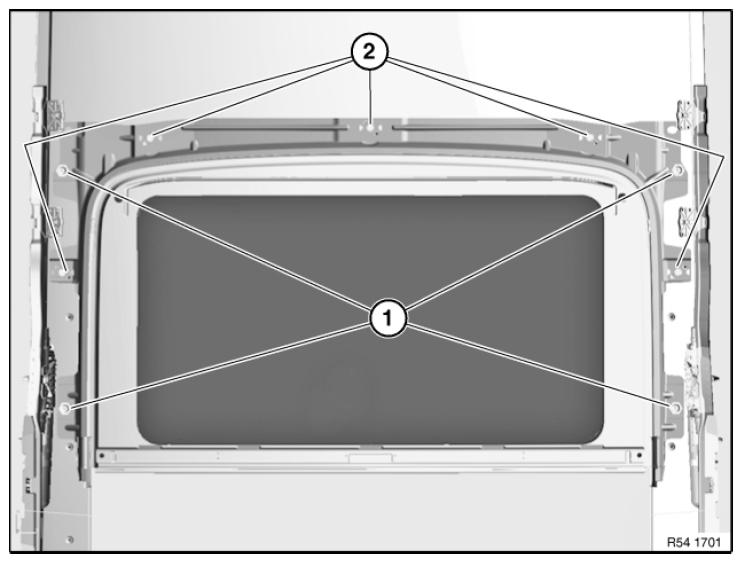

- Remove screws (1) from active components.
- Remove screws (2) from passive components.
- Remove glass slide/tilt sunroof panel from vehicle.
Screw passive components (1) back in to the limit position.
If the retaining tabs are defective, the active components must be replaced.
Installation note:

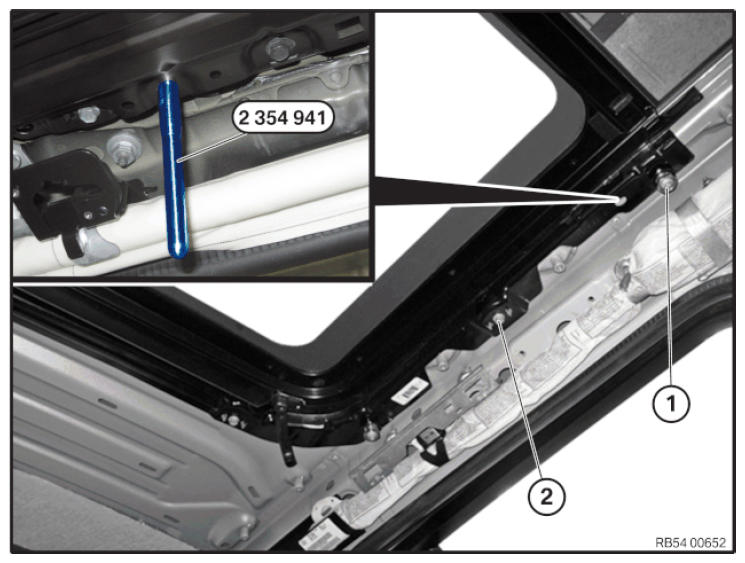

- Loosely screw in all screws (1) of active components; it should just be possible to move the glass slide/tilt sunroof panel.
- Insert special tool 2 354 941 into left and right centering holes and push fully home into glass slide/tilt sunroof panel frame and body panel in order to align glass slide/tilt sunroof panel.
- Tighten all screws (1) of active components:
Tightening torque 54 12 05AZ .
- ADJUST height by means of hexagon head.
- Tighten screws (2) of passive elements.
Tightening torque 54 12 05AZ .
