54 10 050 Removing and installing/replacing mechanism for floating headlining

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SECTION OF PANORAMA GLASS ROOF

Release rivet connection (1).

Release guide block (2) in direction of arrow and remove upwards.

IMPORTANT: Clean slide/tilt sunroof frame! Remove all swarf from the slide/tilt sunroof frame.

Fig 1: Pulling Gate For Floating Headlining Toward Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

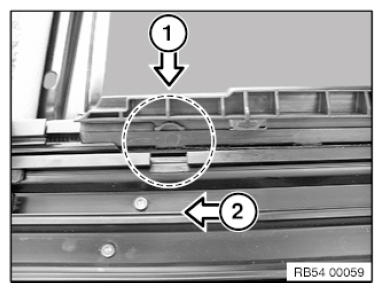

Fit guide block in rail in direction of arrow (1).

Slide guide block forward as far as it will go in direction of arrow (2).

Fig 2: Fitting Guide Block In Rail

Courtesy of BMW OF NORTH AMERICA, INC.

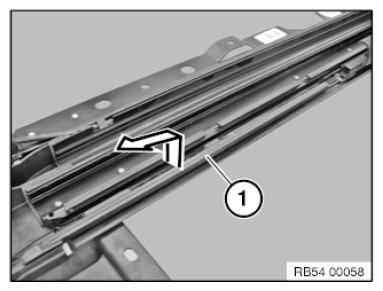

Move floating headlinings (1) to the rear in sequence and remove from the top.

Fig 3: Moving Floating Headlinings To Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

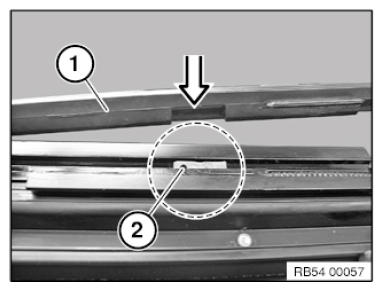

Make sure the rear floating headlining mechanism (1) is correctly fitted on driver (2).

Fig 4: Installing Rear Floating Headlining Mechanism On Driver

Courtesy of BMW OF NORTH AMERICA, INC.

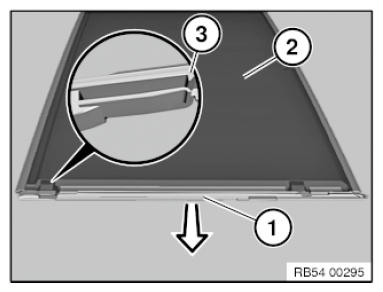

Detach front floating headlining mechanism (1) on left and right.

Installation note:

Make sure the front tabs of the floating headlining front (2) are correctly seated in the front floating headlining mechanism (1). Tabs must clip in correctly behind the lock (3).

Fig 5: Detaching Front Floating Headlining Mechanism On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

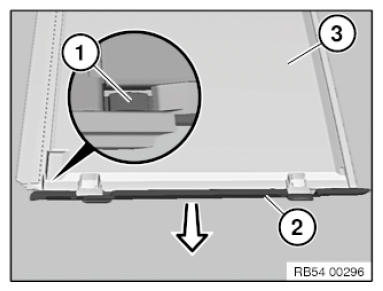

Lift out rubber protective cap (1) of rear floating headlining mechanism (2) on left and right.

Detach rear floating headlining mechanism (2) from rear floating headlining (3) on left and right.

Fig 6: Detaching Rear Floating Headlining Mechanism From Rear Floating Headlining On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For installation, coat the rubber protective cap with volatile lubricant.

Rubber protective cap must be inserted correctly.

IMPORTANT: Risk of damage!
Rubber protective cap must be installed correctly.
If assembled incorrectly, the rubber protective cap () may be lost and lead to major damage to the panorama glass roof.

Fig 7: Installing Rubber Protective Cap Correctly

Courtesy of BMW OF NORTH AMERICA, INC.

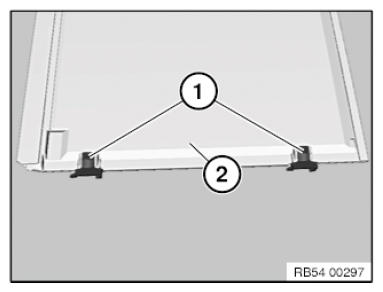

Remove slider (1) on left and right from rear floating headlining (2).

Fig 8: Identifying Slider On Left And Right From Rear Floating Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

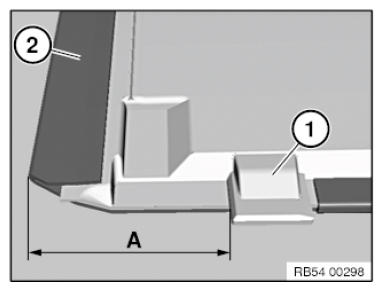

Before installing rear floating headlining, production dimension (A) between floating headlining guide (1) and cover (2) on left and right must be checked.

Dimension A = max. 78 mm

If dimension A > 78 mm, rear floating headlining must be replaced.

Fig 9: Identifying Dimension Between Floating Headlining Guide And Cover On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Run a function check. Move complete floating headlining manually.
