24 30 101 Replacing oil reservoir (GA8HP70Z)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
- Wear protective gloves.
- Ensure adequate ventilation.
IMPORTANT:
Valid for vehicles manufactured from 08/2011 onward!
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved TRANSMISSION OIL .
Failure to comply with this requirement will result in serious damage to the automatic transmission!
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved TRANSMISSION OIL .
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Necessary preliminary tasks:
- Remove transmission oil sump.

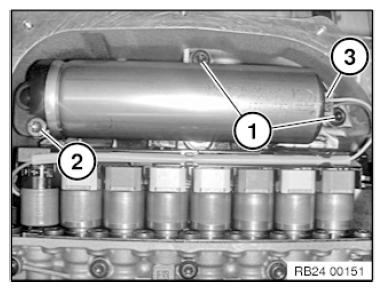

Release screws (1) (M6x20).
Release screw (2) (M6x59).
Tightening torque 24 30 5AZ .
Carefully unlock connector (3) with screwdriver.
Carefully pull out oil accumulator.
IMPORTANT:
Mounting bolts of oil accumulator must
be replaced after removal.
