18 10 100 Replacing intermediate pipe (N47 D20 O1)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 220

WARNING: Risk of burning!
Only perform this repair work after engine has cooled down.
Danger of injury!
Removal of the exhaust system must be carried out with the assistance of a second person.

Support intermediate pipe with jack and special tool 31 2 220 and secure against falling out.

Fig 1: Supporting Intermediate Pipe Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the cutting line is not marked by a punch mark in the pipe, determine the cutting line by means of the pipe length on the new intermediate pipe.

Carry over cutting line to defective intermediate pipe and mark.

Secure intermediate pipe against falling out.

Cut through exhaust pipes at marked point with a suitable tool.

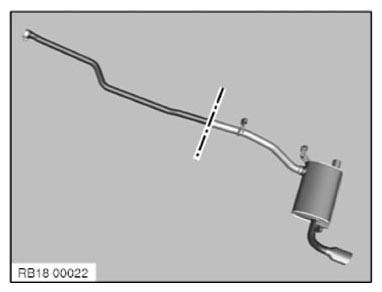

Fig 2: Identifying Intermediate Pipe Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Tightening torque: 18 31 2AZ .

Lower intermediate pipe and remove.

Fig 3: Identifying Intermediate Pipe Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Adjust new intermediate pipe to fit and connect with clamps.

Center clamp and tighten down.

Tightening torque: 18 31 3AZ .

Fig 4: Identifying Intermediate Pipe Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check rubber mount for damage, replace if necessary.

Check exhaust system for leak tightness.
